EN Plating Line

EN Plating Line

orCall 310.458.1752

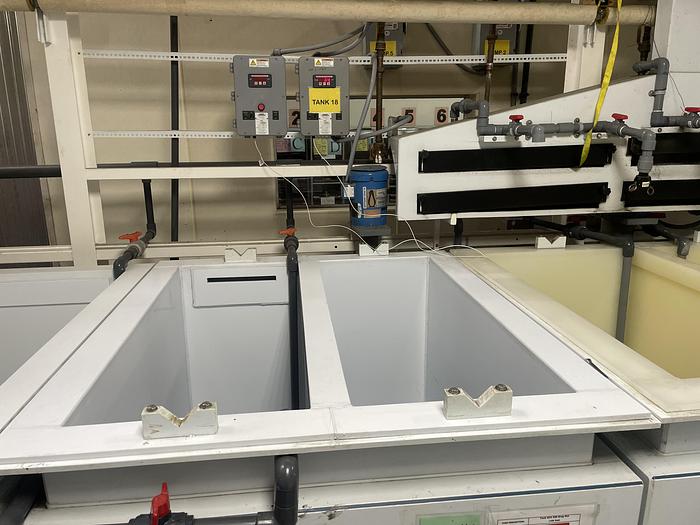

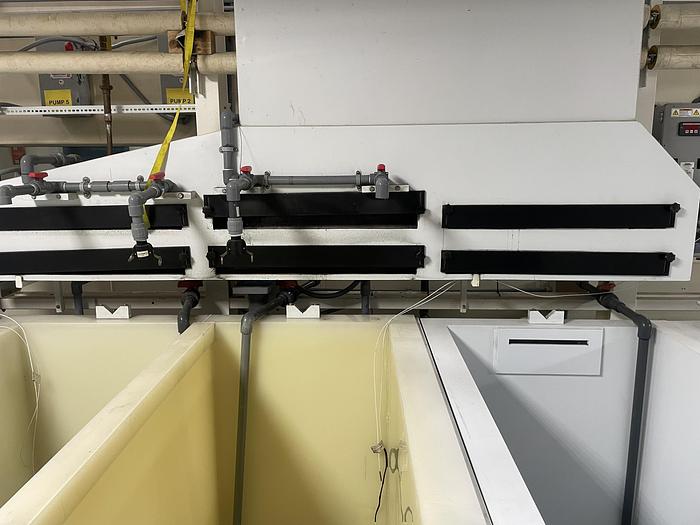

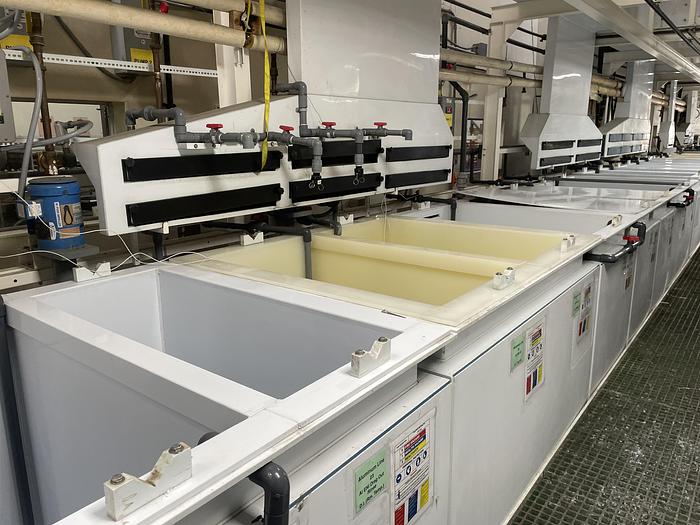

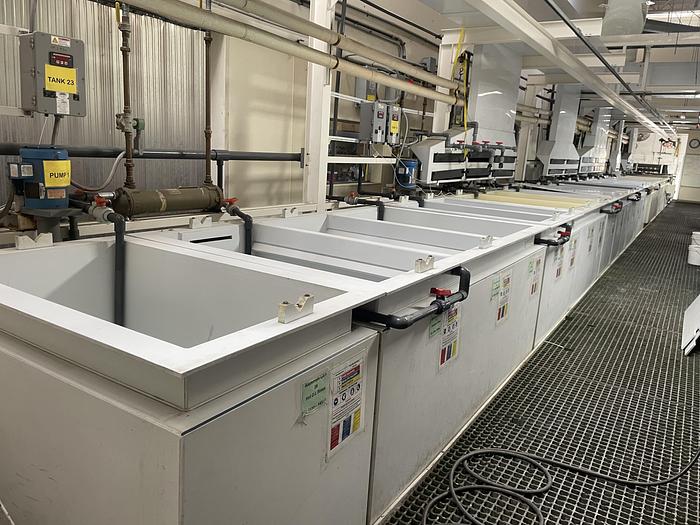

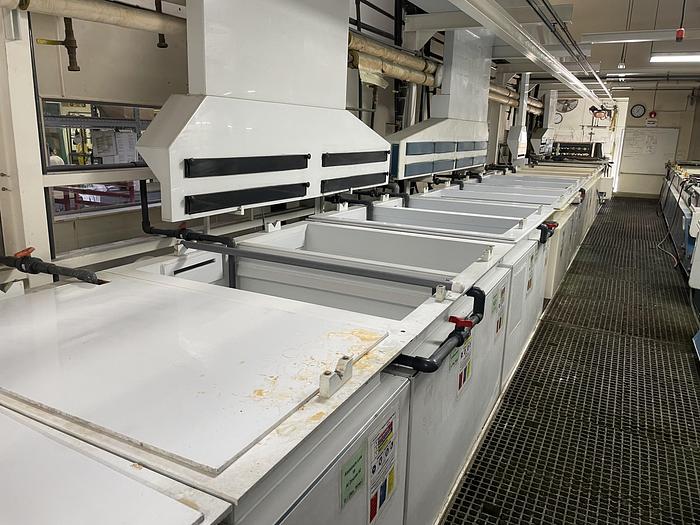

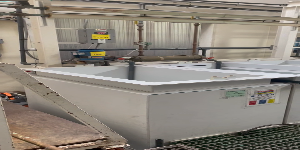

Rarely seen almost new electroless nickel plating line. This line is less than 18 months old and includes 28 well built poly tanks, robust exhaust hoods, heaters & temp controllers, boiler and exhaust fan. Tanks are of dimensions that would work well for multiple applications – keep it an electroless line or convert it to anodizing or electroplating with the addition of rectifiers and anode/cathode systems.

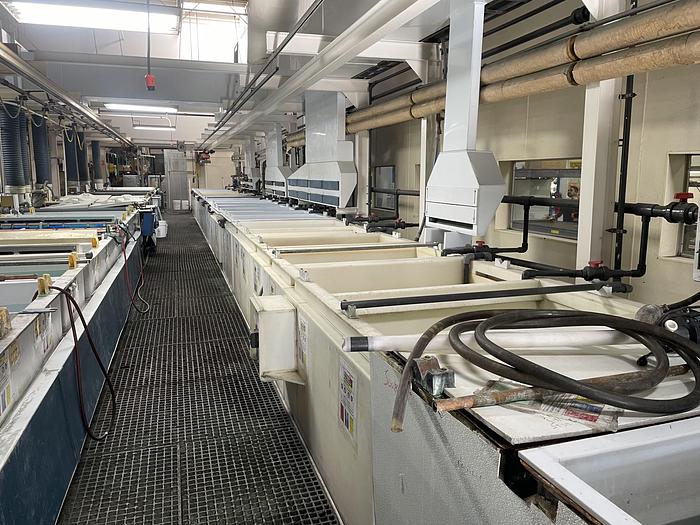

This line was built and installed adjacent to an existing electrolytic nickel line so that the 2 lines share a common catwalk – the older electrolytic nickel line tanks (27 in total) are ALSO INCLUDED IN THIS PACKAGE – THAT’S OVER 50 TANKS INCLUDED IN THE PRICE OF 1 MANUAL ELECTROLESS NICKEL LINE! Accessories for the electrolytic nickel line such as rectifiers and filters etc. can be purchased separately. Rarely do we see a package that includes so many like sized tanks especially with more than half of the tanks being less than 18 month old. This opportunity will not last long.

1/Electroclean With Interior Heating Coil and hood 23"x46"x42"

2/Overflow Rinse With hood 23"x46"x42"

3/Soak Clean With Interior Heating Coil and hood 29"x46"x42"

4/Drag Rinse 25"x46"x42"

5/Overflow Rinse 28"x46"x42"

6/Alkaline Etch With hood 29"x46"x42"

7/Drag Rinse 26"x46"x42"

8/Overflow Rinse 27"x46"x42"

9/Deoxidizer With hood 28"x46"x42"

10/Drag Rinse With hood 26"x46"x42"

11/Overflow Rinse With hood 26"x46"x42"

12/Zincate With hood 26"x46"x42"

13/Drag Rinse With hood 26"x46"x42"

14/Overflow Rinse With hood 26"x46"x42"

15/Zincate Strip With hood 27"x46"x42"

16/Drag Rinse With hood 26"x46"x42"

17/Overflow Rinse 26"x46"x42"

18/Zincate 2 26"x46"x42"

19/Drag Rinse 26"x46"x42"

20/Overflow Rinse 30"x46"x42"

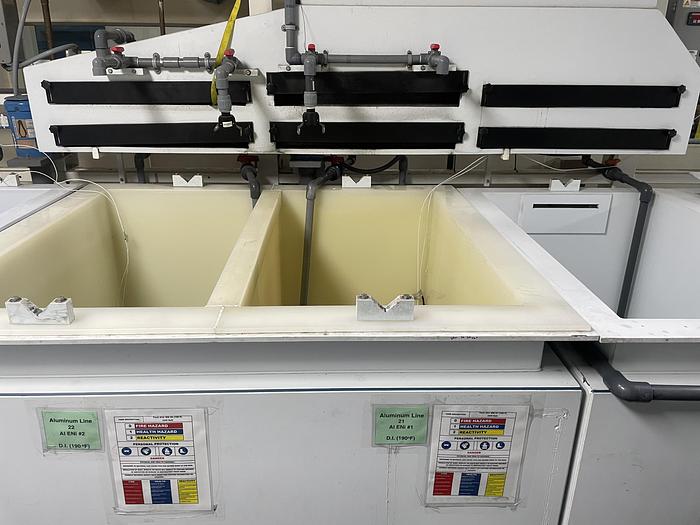

21/Electroless Nickel With External Heat Exchanger, With hood and Penguin Pump 26"x46"x42"

22/Electroless Nickel W/ External Heat Exchanger, A hood and Penguin Pump 26"x46"x42"

23/Drag Rinse With a hood 18.5"x46"x42"

24/Overflow Rinse 18.5"x46"x42"

25/Drag Rinse 26"x46"x42"

26/Overflow Rinse 26"x46"x42"

27/Overflow Rinse 26"x46"x42"

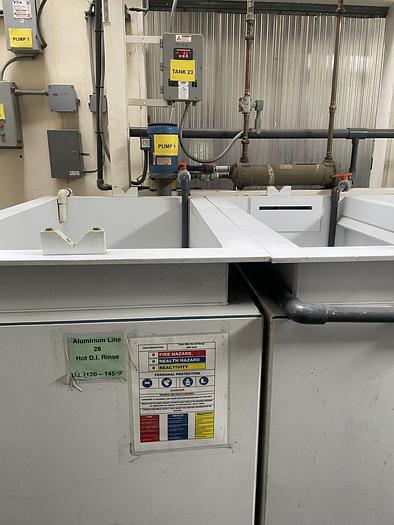

28/Hot DI Rinse With External Heat Exchanger and Penguin Pump 26"x46"x42"

Hoist Single Rail 1000 lbs

Boiler Ajax 900-450BTU Water Natural Gas 480/3 pump

Exhaust Fan HEE 12,000 CFM

Temp Controllers Process Tech


Stock Number1252
